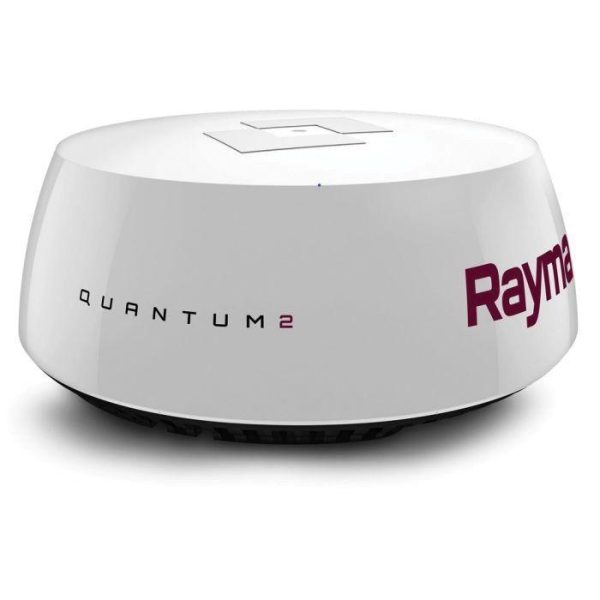

RAYMARINE Q24D Doppler 18″ Radar WITHOUT 10m Power Cable | E70498
Description
Introducing Raymarine Quantum 2 radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges. Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high traffic areas.
Additional information
| Weight | 27 lbs |
|---|---|
| Item Name | Advanced Doppler Wireless Chirp Radar |
| Model | E70498 |
| UPC | 723193823101 |
| Manufacturer | |
| Antenna Size | 18 in |
| Antenna Type | Patch Array |
| Beam | 4.9 deg Horizontal x 20 deg Vertical |
| Dimensions | 541 mm Dia x 209.5 mm H |
| Frequency | 9354 to 9446 MHz Transmitter; 1200 to 4800 Hz Pulse Repetition; Up to 32 MHz CHIRP |
| Power Consumption | 17 W Transmitter; 7 W Standby; 2 W Sleep |
| Pulse Width | 40 ns to 14.7 us (3 dB) |
| Radar Technology | Solid State Transmitter with Pulse Compression Technology |
| Rotation | 24 rpm |
| Temperature Rating | -10 to 55 deg C |
| Transmit Power | 20 W Peak |
| Voltage Rating | 12 to 24 VDC |
| Waterproof Rating | IPX6 |
| Wind Speed | 100 knots |
