Description

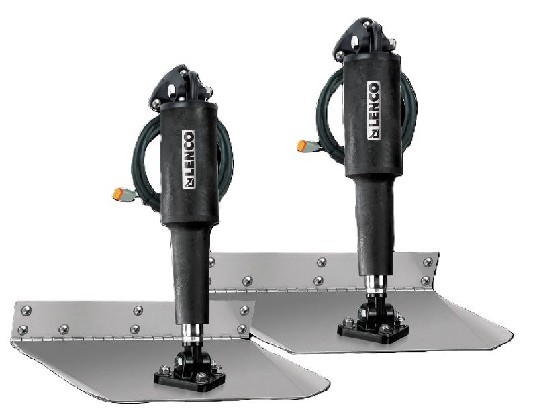

LENCO MARINE 9″ X 24″ 12V STANDARD MOUNT TRIM TAB KIT | 15003-101

12V System


The series that started the electric revolution! Our original Trim Tab design
and still the most popular series we build. Ideal for center console fishing
boats to cuddy cabin cruisers.


Blades are constructed of 12-gauge (2.7 mm) laser cut 304 stainless steel
with a 5/8″ (1.6 cm) flared trailing edge & 1/8″ (3.2 mm) diameter hinge pin.
Upper and lower high impact corrosion proof mounting brackets with
mechanical cable gland seal.

Boat Length 26′-40’/Hinge Height 1″/Min. Transom Height 14″

Kits include:
• (2) 12-gauge 304 stainless steel standard finish
• (2) 15054-001 actuators with 6′ (1.8 m) leads and Deutsch connectors
• (2) 30133-103 actuator extension wiring harnesses – 20′ (6.1 m) length
• (2) 15085-001 upper mounting brackets with gland seal
• (2) 50014-001 lower mounting brackets
