Description

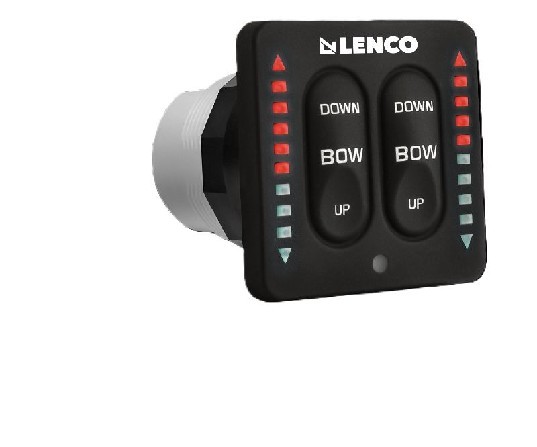

LENCO MARINE LED IND. TWO-PIECE TACTILE SWITCH KIT W/PIGTAIL FOR SINGLE ACTUATOR SYSTEMS | 15270-001

12 & 24 Volt

The LED Two Piece Kits are for use with single or dual actuator systems with a shortened bezel requiring less depth to mount. Functionality is built into the separate control box and must be mounted remotely.

Features
• Simple, quick, Plug & Play installation
• Instant response
• Built-in retractor
• Low profile keypad design
• Self-contained, solid state control box with waterproof Plug & Play
Deutsch connectors
• 36″ power pigtail (single actuator) or 72″ power pigtail (dual
actuator) for control box
• 2-1/16″ hole cut-out size, overall keypad size of 2.75″ x 2.75″
• 2.33″ clearance required from the back of the keypad’s mounting
location
• Two high-intensity LED Indicator displays show the exact position
of your trim tabs at all times
• Photo Eye for optimum viewing in all light conditions
• Backlit keypad for optimum viewing at night
• Self-Check feature (single)​

ATTENTION: REPLACEMENT KEY
PADS & CONTROL BOXES FOR
2016 AND PRIOR SWITCHES ARE
NOT COMPATIBLE WITH THIS
SWITCH KIT.
