Description

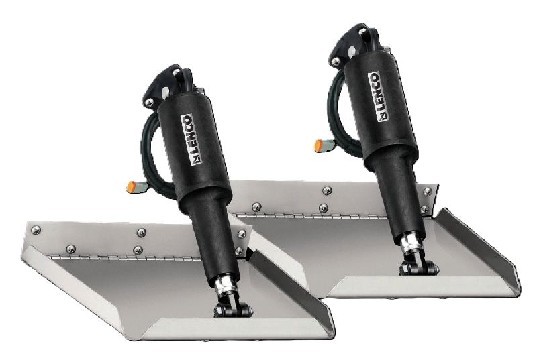

LENCO MARINE 9″ X 12″ 12V EDGE MOUNT TRIM TAB KIT | 15014-101

12V System

Designed for boat applications where a lower actuator mounting height is
desirable. Actuator mounts at the trailing edge of the blade giving it a 1/2″
(1.3 cm) lower mounting height on 9″ (22.9 cm) long blades & 3″ (7.6 cm) lower
mounting height on 12″ (30.5 cm) long blades. All edges are turned up for added
strength and style.


The Edge Mount blades are constructed of 12-gauge (2.7 mm) laser cut 304
stainless steel with 1″ (2.5 cm) turned up edges and a 5 degree taper on both
sides to the trailing edge, & 1/8″ (3.2 mm) diameter hinge pin. Upper and lower
high impact corrosion proof mounting brackets with mechanical cable gland seal.

Boat Length 16′-25’/Hinge Height 2″/Min. Transom Height 13.5″

Kits include:
• (2) 12-gauge 304 stainless steel standard finish blades
• (2) 15054-001 actuators with 6′ (1.8 m) leads and Deutsch connectors
• (2) 30133-103 actuator extension wiring harnesses – 20′ (6.1 m) length
• (2) 15085-001 upper mounting brackets with gland seal
• (2) 50014-001 lower mounting brackets
