Description

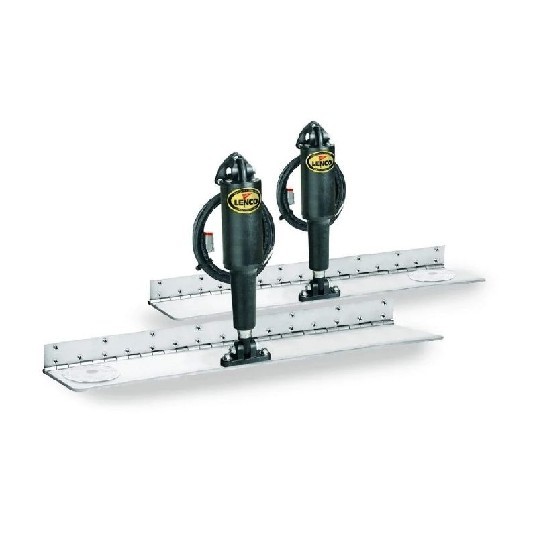

LENCO MARINE 4″ X 24″ HYBRID TRIM TAB KIT – 12 VOLT | 15146-101

12V & 24V Systems

IDEAL FOR BOATS:
30′ to 60′ (9.1 m to 18.
Engineered to combine the benefits and features of our Limited Space
and Super Strong series. This ultra-compact design utilizes a greater
deflection angle creating substantial lift with less surface area.
Blades constructed of 7-gauge (4.6 mm) laser cut 304 stainless steel with
3/8″ (9.5 mm) diameter hinge pin. High impact corrosion proof upper and
lower mounting brackets with mechanical gland cable seal, 5/16″ (.8 cm)
upper and lower stainless steel mounting bolts. Also includes (2) 3.75″
(9.5 cm) sacrificial anodes installed.

Kit includes:

(2) 7-gauge 304 stainless steel blades with standard finish
• (2) Standard actuators with 6′ (1.8 m) lead and Deutsch connectors
• (2) 15085-001 upper mounting brackets with gland seal
• (2) 50014-001 lower mounting brackets
• Note: Actuator extension harnesses not in kits, must be
purchased separately (2 required)
