Description

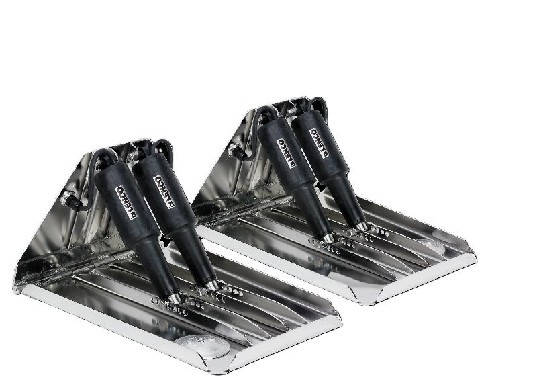

LENCO MARINE 24″ X 14″ XD PERFORMANCE TRIM TAB KIT – 12 VOLT – DUAL ACTUATOR | 15047-101

12V System


This kit is similar to our Heavy Duty Performance series with a thicker, stronger
blade for those boaters who run hard in extreme conditions.


Blades are constructed of Electro-Polished 10-gauge (3.4 mm) laser cut 304
stainless steel with 1″ (2.5 cm) turned up edges and a 5 degree taper on the
inside, heavy duty hinge with 3/8″ (9.5 mm) diameter hinge pin. Full transom
back plate with mechanical strain-relief cable seals, welded on stainless steel
upper & adjustable lower actuator mounting brackets, 3/8″ (9.5 mm) stainless
steel mounting bolts. 3.75″ (9.5 cm) sacrificial anodes installed.

Boat Length 25′-50’/Min. Transom Height 10.5″

Kits include:
• (2) 10-gauge 304 stainless steel Electro-Polished blades
• (4) 15056-001 XD Extreme Duty actuators with 6′ (1.8 m) leads & Deutsch connectors

Note: Boat-mounting hardware to be supplied by the customer.
• Note: Actuator extension harnesses not in kits, must be purchased separately
(2 required for single actuator and 4 required for dual actuator)
