Description

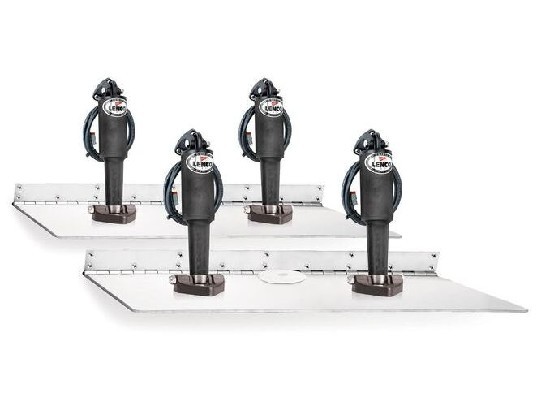

LENCO MARINE 16″ X 24″ SUPER STRONG TRIM TAB KIT – 24 VOLT – DUAL ACTUATOR SYSTEM | 15030-101

24V System

This Super Strong design is for sport fishing, large cruising and
commercial vessels. This series has a completely flat blade design
which reduces spray giving you a clean, dry ride.


Blades are constructed of 7-gauge (4.6 mm) laser cut 304 stainless
steel with 3/8″ (9.5 mm) diameter hinge pin. High impact corrosion
proof upper and lower mounting brackets with mechanical gland
cable seal, 5/16″ (.8 cm) upper and 3/8″ (9.5 mm) lower stainless steel
mounting bolts. 3.75″ (9.5 cm) sacrificial anodes installed.

Boat Length 35′-50′

Kits include:
• (2) 7-gauge 304 stainless steel standard finish blades
• (4) 15055-001 12 Volt (15062-001 for 24 Volt) XD Extreme Duty actuators
with 6′ (1.8 m) & Deutsch connectors
• (4) 15140-001 120 Lower Mounting Brackets

Note: Actuator extension harnesses not in kits, must be purchased separately
(2 required for single actuator and 4 required for dual actuator).
