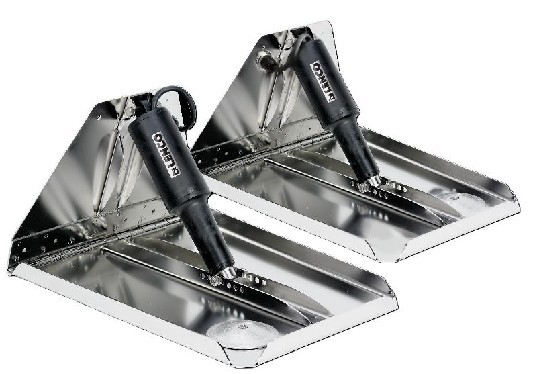

LENCO MARINE 14″ X 12″ HEAVY DUTY PERFORMANCE TRIM TAB KIT  – 12 VOLT | 15042-101

12V System


The Heavy Duty series is designed & built for the boats that need extra strength
to support them in rougher water at higher speeds.


Blades are constructed of Electro-Polished 12-gauge (2.7 mm) laser cut 304
stainless steel with 1″ (2.5 cm) turned up edges and a 5 degree taper on the inside,
heavy duty hinge with 1/4″ (6.4 mm) diameter hinge pin. Full transom back plate
with welded on stainless steel upper & adjustable lower actuator mounting
brackets, 5/16″ (.8 cm) stainless steel mounting bolts & mechanical strain-relief
cable seals. 3.75″ (9.5 cm) sacrificial anodes installed.

Boat Length 19′-36’/Min. Transom Height 10.5″

Kits include:
• (2) 12-gauge 304 stainless steel Electro-Polished blades
• (2) 15055-001 XD Extreme Duty actuators with 6′ (1.8 m) leads & Deutsch connectors
• (2) 30133-103 actuator extension wiring harnesses – 20′ (6.1 m) length

• Note: Boat-mounting hardware to be supplied by the customer
