Description

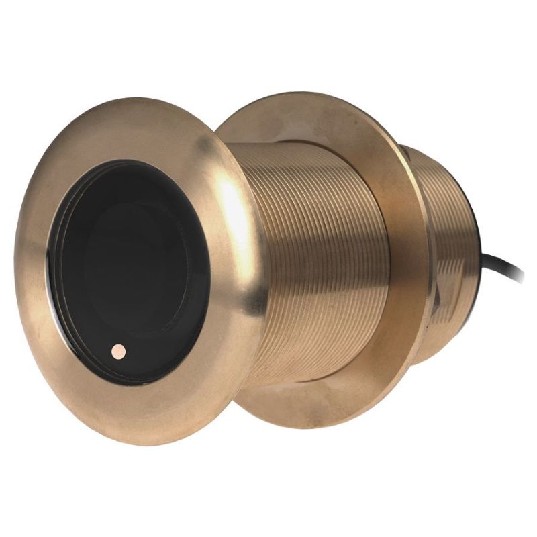

AIRMAR B60-12-BL – B60 50/200kHz, 600W, 12° Tilt, Navico BL, DT | B60-12-BL

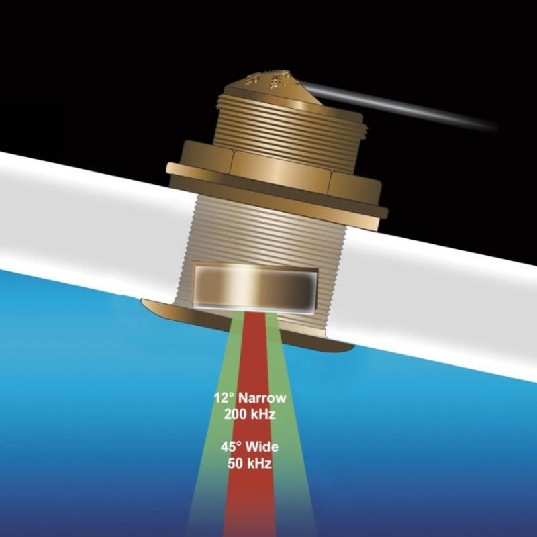

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element^™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.

Available in two Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 8 to 15° hull deadrise angles

FEATURES

• Depth and fast-response water temperature sensing
• 600 W of power
• Dual-frequency element:

• 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200′)
• 200 kHz with a 12° beamwidth for depth performance to 206 m (700′)

• Perfect for center-console or trailered boats
• Low-profile bronze housing extends only 5 mm (3/16″) outside the hull
• No effect on your boat’s running performance
• Bronze housing for fiberglass or wood hull
• Also available in a stainless steel housing (SS60) for use with all hull materials
