Key Features
- Three fully independent sonar channels deliver high-resolution coverage
- Noise-free clarity at all depth ranges
- Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP
- Compatible with wide-angle CHIRP transducers for greater coverage of the water column

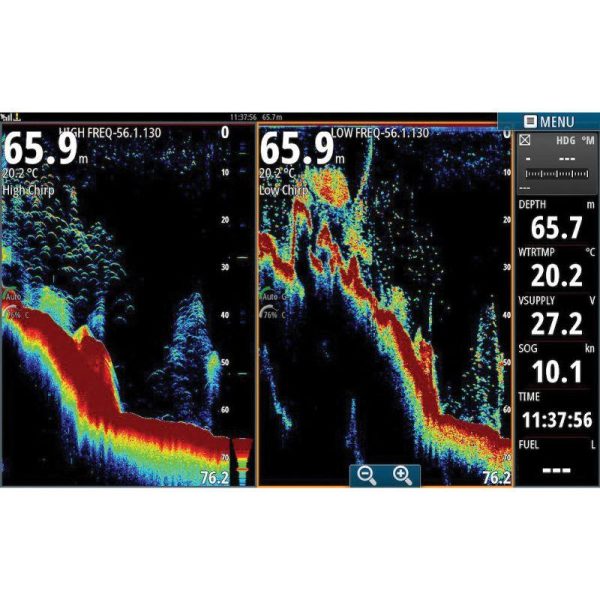

- Simultaneous split-screen viewing of multiple depth ranges on your display
- Maximum depth of 3,000 meters / 10,000 feet (transducer dependent)
- Easy to install with three plug-and-play 9-pin transducer connectors
- Compatible with Simrad NSSevo2/3/3S multifunction displays, NSO evo2/3/3S systems, and S2000-series fish finders.
Additional information
| Weight | 14 lbs |
|---|---|
| Dimensions | 16 × 16 × 6 in |
| Manufacturer | |
| Item Name | Sounder with Chirp |
| Model | 000-13260-001 |
| UPC | 9420024154595 |
| Voltage Rating | 12 to 24 V |
| Dimensions | 13.4 in W x 9.8 in D x 3.9 in H |
| Transmit Power | 23 W |
| Range | 3000 m |
| Power Consumption | 23 W Typical; 85 W Maximum |
| Temperature Rating | -15 to 55 deg C |
| Frequency | 25 to 250 kHz |
| Ethernet Port | 1 x 100 Mbps |
| Mounting | Bulkhead |
| Recommended Fuse Rating | 5:00 AM |
| Weight | 4.7 kg |
