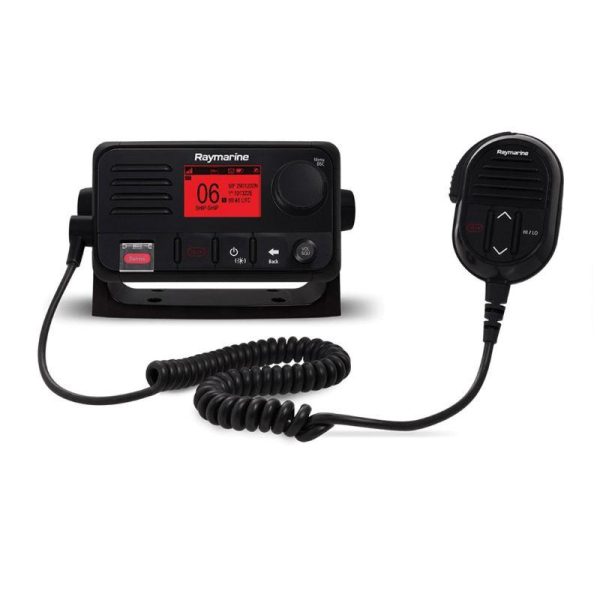

RAYMARINE VHF Radio With Integrated GPS Receiver | E70524
Description
Raymarine’s Ray53 radio is small in size but big on features and performance. Ray53 is a full function VHF marine radio with Class D Digital Selective Calling (DSC) and a built-in GPS receiver. Simply program your boat’s MMSI number into the Ray53 and immediately benefit from the enhanced calling and safety features of DSC.
Additional information
| Weight | 10 lbs |
|---|---|
| Item Name | VHF Radio with Integrated GPS Receiver |
| Model | E70524 |
| UPC | 723193826928 |
| Manufacturer | |
| Amperage Rating | 2 A Receive, 600 mA Standby; 6 A High Power |
| Channel Spacing | 12.5 kHz |
| Component Design | Compact |
| Frequency | 156 to 157.425 MHz Transmitter; 156.05 to 163.275 MHz Receiver |
| Impedance | 50 Ohm Antenna |
| Number of Channels | 72 |
| Power Rating | 25 W High; 1 W Low |
| Receiver Sensitivity | -167 dBm Tracking, -148 dBm Acquisition |
| Speaker Power | 2.5 W at 8 Ohm Base Station; 1 W at 16 Ohm Fistmic; 5 W at 8 Ohm External |
| Temperature Rating | -20 to 60 deg C Operating, -25 to 70 deg C Storage |
| Voltage Rating | 12 VDC |
| Waterproof Rating | IPX6, IPX7 |
| Environmental Conditions | Up to 95% Relative Humidity |
| Frequency Stability | +/-1.5 ppm |
