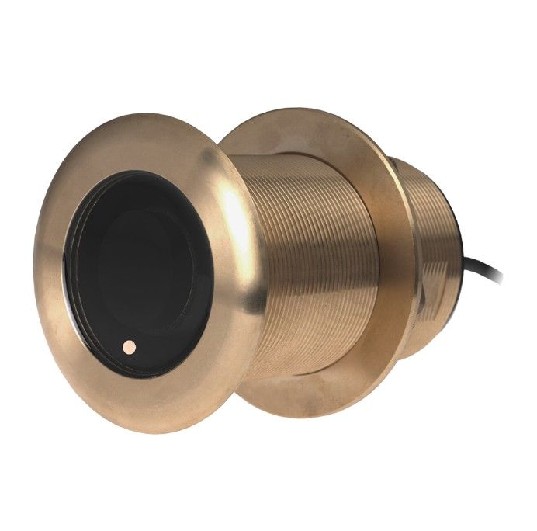

AIRMAR B60-12-MM, BRONZE LOW PROFILE, 12° Tilt, MIX AND MATCH Transducer, DT | B60-12-8G
Description
MUST PURCHASE APPROPRIATE MIX AND MATCH CABLE SEPARATELY
@page {margin: 96px 96px 96px 96px;}.docbody {font-family: ‘Times New Roman’}p.MsoNormal, li.MsoNormal, ul.MsoNormal, div.MsoNormal{ margin-top:0px; margin-right:0px; margin-bottom: 1.0pt; margin-left:0cm;line-height:1.07; font-size:11.0pt; white-space: pre-wrap}
The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.
Available in two Tilted Element models:
Fixed 20° tilted version for 16 to 24° hull deadrise angles
Fixed 12° tilted version for 8 to 15° hull deadrise angles
FEATURES:
- Depth and fast-response water temperature sensing
- 600 W of power

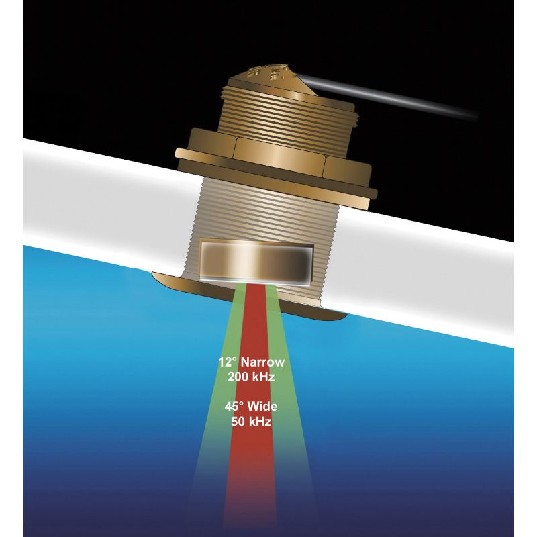

- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200′)
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700′)
- Perfect for center-console or trailered boats
- Low-profile bronze housing extends only 5 mm (3/16″) outside the hull
- No effect on your boat’s running performance
- Bronze housing for fiberglass or wood hull
- Also available in a stainless steel housing (SS60) for use with all hull materials
SPECIFICATIONS:
|
Brand |
Airmar Technology |
|
Acoustic Window |
Urethane |
|
Cable-Length |
2 m (7′) |
|
Common Use |
Leisure/Yachting, Fishing |
|
Connector |
Airmar 5-Pin (MM) |
|
Conventional Beam |
45°/12° |
|
Country of Origin |
USA |
|
Deadrise Range |
8° to 15° |
|
Frequency Band |
50/200 kHz |
|
Material |
Bronze |
|
Max Deadrise |
Up to 24° |
|
Max Depth |
Low frequency- 366 m (1200′), High frequency- 206 m (700′) |
|
Mix and Match Series |
5-Pin 600 Watt |
|
Mounting Style |
Tilted Element Thru-Hull |
|
Retractable housing |
No |
|
Sensor Connector |
MM |
|
Single or Dual Frequency |
Conventional Dual Frequency |
|
Tilt Angle |
12° |
|
Tilted Element |
Yes |
|
Weight |
1.4 kg (3 lb.) |
|
Power Rating |
600 W |
|
Max Deadrise Angle |
24° |
|
Functions |
Depth, Temperature |
|
Hull Material |
Fiberglass or wood |
|
Max Vessel LOA |
Up to 8 m (26′) |
|
Hole Size |
60 mm (2-3/8″) |
|
Usable Shaft Length |
68.5 mm (2.70″) |
|
Display Connector |
Cable Required |
Additional information
| Manufacturer | |
|---|---|
| Model | B60-12-MM |
