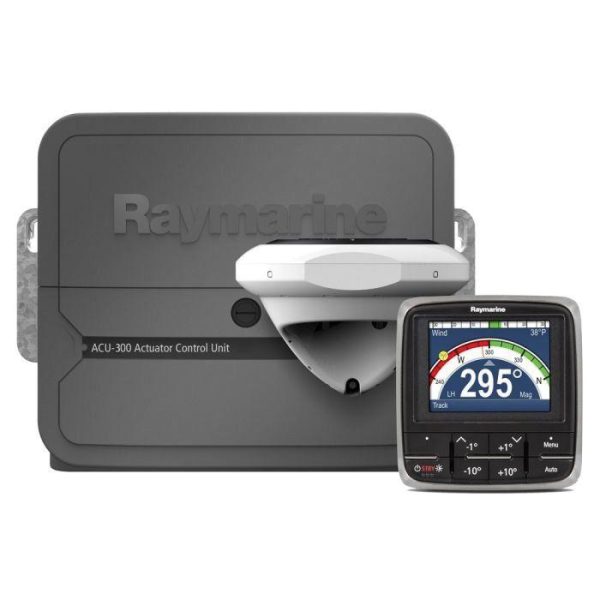

RAYMARINE SOLENOID PILOT, With E22167 P70R, E70096 EV-1 Core, E70139 ACU-300, R70160 Evolution Cable | T70160

SKU RAYP70R/EV-300 Categories ,


No fuss, easy to install and robust – the Evolution autopilot combines Raymarine’s autopilot expertise, FLIR Systems’ R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control. Evolution Autopilots can be purchased as a system pack with a drive unit, a system pack without a drive unit or as individual components. At the center of every Evolution system is the intelligent EV sensor core, a 9 axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid state sensors with the Evolution autopilot processor into a single easy to install housing. The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.

Additional information
Weight 10 lbs
Item Name

Evolution Solenoid Autopilot







No Drive

Display Type

64K 16 bit TFT LCD

Power Consumption

30 mA Sensor; 300 mA ACU Control Unit

Display Resolution

320 x 240 pixel

Temperature Rating

-25 to 55 deg C

Waterproof Rating


Diagonal Screen Size

3.5 in

Environmental Conditions

Up to 93% Relative Humidity

Storage Temperature

-30 to 70 deg C

Drive Current Output
