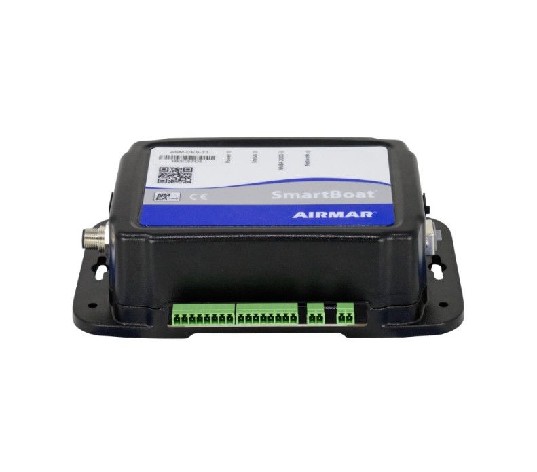

Description
Features:
- Built-in wireless networking with browser-based configuration and management tools.
- Wireless, onboard user interface eliminates the need for proprietary USB gateways and software.
- SmartFlex View embedded configuration software is accessed wirelessly from any Wi-Fi capable device.
- Industry leading, user configurable alerts and automation via built-in SmartFlex Alert
- SmartFlex Filter – allows detailed filtering of PGN data across multiple networks or devices.
- Easily save and clone system settings for backup and repeated system installations.
- Ideal for new builds, retrofits and enhancing existing NMEA 2000® networks.
- CES models include a second CAN interface, serial input, Ethernet and dual USB connections.
- Secondary CAN connection can be configured for NMEA 2000®, J1939 to NMEA 2000® conversion or attaching Digital Sensors.
- Serial connection can be used for NMEA0183 to NMEA 2000® or J1709/J1587 to NMEA 2000® conversion.
- Ethernet connection allows modules to be hard-wired to a switch or router for system integration.
- T1 models add 10 flexible, software-configurable sensor channels for conversion to industry-standard NMEA 2000® PGNs.
- 8 user-configurable sensor channels accept any combination of current loop, resistive, thermistor or binary switch inputs.
- 2 dedicated, configurable thermocouple channels accept a wide range of K, J, T and E Type sensors.
- Screw-type, pluggable interface connectors provide secure wire installation and simplify sensor attachment.
Additional information
Model | ASM-CES-T1 |
---|---|
Manufacturer |
