AIRMAR Tilted Element B75C 300 W 40 to 75 kHz Low Bronze Fixed 12 deg Tilted Chirp-Ready Through-Hull Depth and Temperature Transducer|B75C-12-L

AIRMAR B75C-12-L, Bronze Thru-Hull 12-degree CHIRP at Low Frequency, 40kHz – 75kHz, No Connector, 600 watt

Description

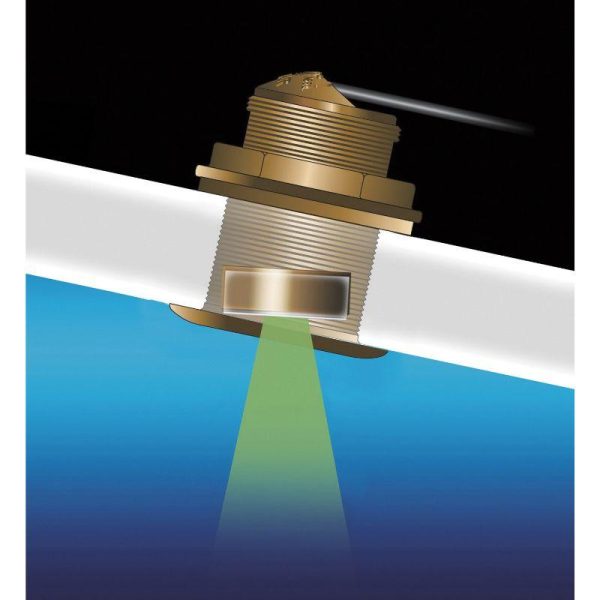

Airmar’s low profile CHIRP-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation and delivers tremendous deep water performance. The B75L transmits across the following bandwidth – low frequency 40 to 75 kHz. Tilted element transducers have the ceramic element fixed at either a 12 deg or 0 deg angle within the transducer housing. The transducer is installed almost flush to the hull and the tilted element corrects for the hull deadrise by orienting the beam directly down. This assures maximum echo returns to the transducer and more accurate depth readings.

Additional information

Weight 10 lbs
Manufacturer

Item Name

Chirp-Ready Transducer

Model

B75C-12-L

Type

Fixed 12 deg Tilt

Material

Bronze

Frequency

40 to 75 kHz Low

Transmit Power

300 W

Beam

32 to 21 deg

Maximum Depth

1200 ft

Deadrise Angle

8 to 15 deg

Depth/Speed/Temperature

Depth and Temperature

Mounting Type

Through-Hull

Hole Size

2-13/16 in

Dimensions

3.71 in Dia x 5.09 in L

Bandwidth

35 kHz

Weight

3 lb
