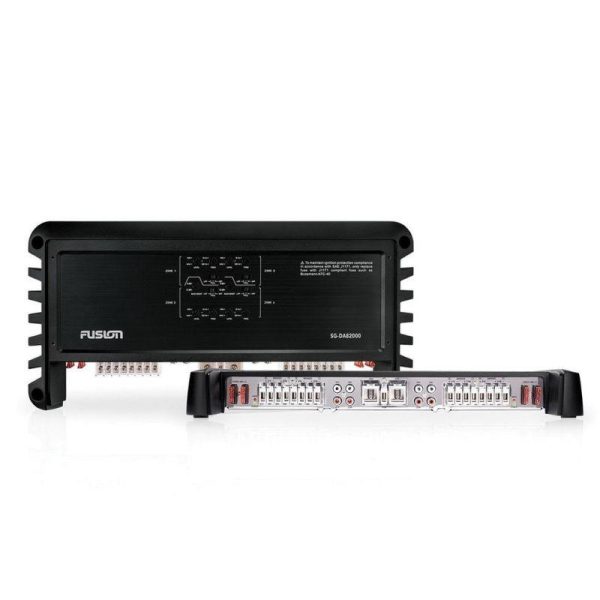

FUSION Signature Series 2000 W 8-Channel Class-D High Performance Marine Amplifier|010-02162-00

FUSION SG DA82000 – Signature 2000 Watt, Class D 8-CH Digital Amplifier, @ ohm Stable, Stainless cover

Description

Fusion Signature Series amplifiers are purpose built for the marine environment. Boasting some of the most impressive environmental protection available, they deliver a Signature performance on the water like never before. Our most efficient, stunning and powerful marine amplifier, the SG-DA82000 also features a True-Marine design that will resist corrosion. Its incredible 2000 W peak power will power up to 8 pairs of speakers at 2 Ohm (2 x 4 Ohm speakers per channel in parallel) or up to 4 pairs of speakers at 2 Ohm (2 x 4 Ohm speakers per channel in parallel) and 2 subwoofers. RCA line level inputs allow for easy connection to new or existing systems. The SG-DA82000 is Fusion’s first 8 channel, Class-D Hi-Fi marine amplifier. The key benefit of a Class-D amplifier is that it has a low battery drain with high output, making this the perfect amplifier for the marine environment. The SG-DA82000 also has conformal coated PCBs for maximum product life and performance, plus the amplifier chassis is a heat sink, to reduce component core temperature and increase efficiency. Undeniably a stand-out piece, the stunning stainless steel mirror control panel cover conceals and protects all cable connections and setting controls, with an attractive finish to complement any installation.

Additional information

Weight 10 lbs
Item Name

Marine Amplifier

Manufacturer

Model

010-02162-00

Type

High Performance

Wattage

2000 W

Number of Channels

8

Dimensions

16-9/16 in L x 8-1/4 in D x 2-1/4 in H

Signal to Noise Ratio

>85 dB

Total Harmonic Distortion

1%

Amperage Rating

100 A

Voltage Rating

10.8 to 16 V

Frequency Response

10 Hz to 40 kHz

Fuse Rating

(4) 40 A

Amplifier Class

Class D

Total Rated Power

100 W RMS x 8 at 14.4 V to 4 Ohm, 140 W RMS x 8 at 14.4 V to 2 Ohm, 280 W RMS x 4 at 14.4 V to 4 Ohm Bridged

Crosstalk

>60 dB

Operating Temperature

0 to 50 deg C

Weight

11.5 lb
