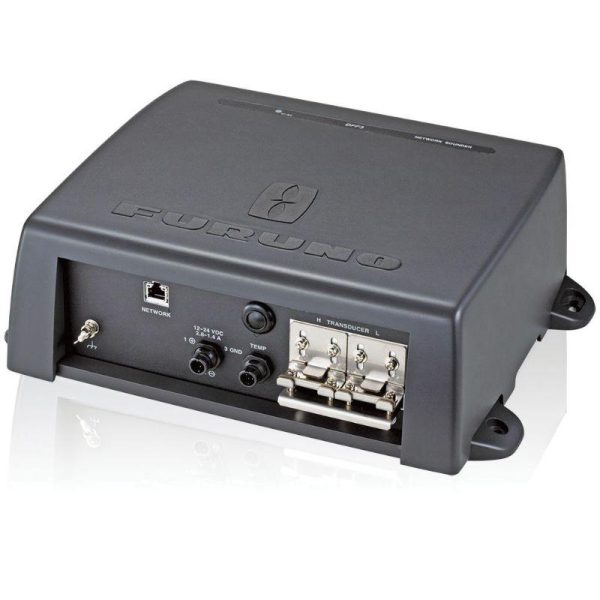

FURUNO 1 or 2 or 3 kW 28 to 200 kHz External Black Box Echosounder Module|DFF3

FURUNO NETWORK HIGH POWER DIGITAL BLACK BOX ECHOSOUNDER UNIT, 1/2/3KW, DUAL SELECTABLE FREQ’S,(FFS), NEEDS XDUCER

Description

Furuno’s DFF3 is a network sounder featuring FDF (Furuno Digital Filter) signal processing technology. The DFF3 is designed for use with NavNet, NavNet VX2, NavNet 3D, NavNet TZtouch and NavNet TZtouch2. This digital network sounder can turn any NavNet display into a powerful, dual frequency digital fish finder. The compact network sounder unit connects directly to a NavNet display or an Ethernet hub with a single Ethernet cable. If it is connected to an Ethernet hub that has multiple displays attached, each of those displays will have access to the Network Sounder. The sounder itself has a selectable 1 kW, 2 kW or 3 kW output power. You may choose any two operating frequencies from 28 to 200 kHz with FFS (Furuno Free Synthesis) technology. With the powerful DFF3, you can obtain detailed echoes of bottom structure and fish using range scales of up to 3000 m (nearly 10000 ft). And because the network sounder is used on a NavNet display, you will also be able to use its radar and chart plotter features depending on which unit you have.

Additional information

Weight 15 lbs
Manufacturer

Item Name

External Black Box Echosounder Module

Model

DFF3

Voltage Rating

12 to 24 VDC

Transmit Power

1/2/3 kW

Waterproof Rating

IPX0

Range

3000 m

Power Consumption

30 W

Temperature Rating

-15 to 55 deg C

Amperage Rating

3.5 A

Frequency

28 to 200 kHz

Weight

3.8 kg
