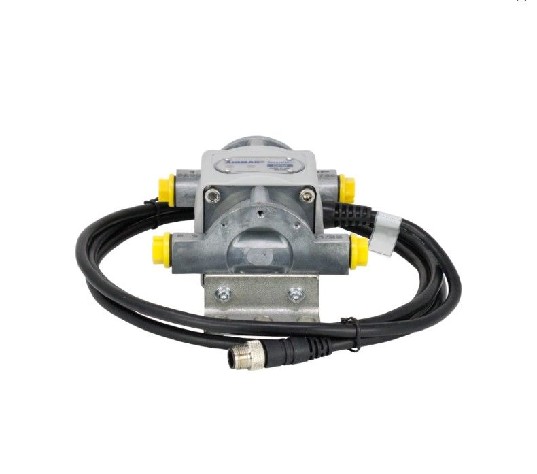

AIRMAR SmartFlex Diesel Flow Meter, 10-120 LPH, Dual-Chamber, Alloy Housing, Threaded Connections | DFM-120-DA
Description
@page {margin: 96px 96px 96px 96px;}.docbody {font-family: ‘Times New Roman’}p.MsoNormal, li.MsoNormal, ul.MsoNormal, div.MsoNormal{ margin-top:0px; margin-right:0px; margin-bottom: 1.0pt; margin-left:0cm;line-height:1.07; font-size:11.0pt; white-space: pre-wrap}
SmartFlex Dual-Chamber Diesel Fuel Flow Meter
The SmartFlex™ dual-chamber flow meters are designed for fuel consumption measurement of diesel engine systems with flow rates up to 600 L/h. The flow meter measures fuel consumption in each line and computes the difference between supply and return. SmartFlex DFMs output NMEA2000® to a T1 or T2 SmartBoat or SmartFlex Module*, for display on multi-function displays or Signal K interfaces.
Differential measurement of fuel consumption
SmartFlex dual-chamber DFMs have two measuring chambers for supply and return fuel lines. The flow meter measures fuel consumption in each line and computes the difference between supply and return.
Built-in battery
In case of the absence of an external power source, from the on-board network for example, the SmartFlex DFM keeps registering data to the internal memory. When external power is restored, all accumulated data will be transferred to the on-board monitoring terminal.
*SmartFlex DFM must be connected to a SmartBoat® or SmartFlex T1 or T2 CES module.
DFM models provide data for fuel consumption including:
- Instant fuel consumption, L/H
- Hourly fuel consumption in “Forward” line
- Hourly fuel consumption in “Return” line
- Total fuel consumption, L
- Total fuel consumption in “Idling” mode of engine operation
- Total fuel consumption in “Optimal” mode of engine operation
- Total fuel consumption in “Overload” mode of engine operation
- Total fuel consumption in “Negative” mode of flow meter operation (return exceeds supply)
Additional information
Model | DFM-120-DA |
---|---|
Manufacturer |
