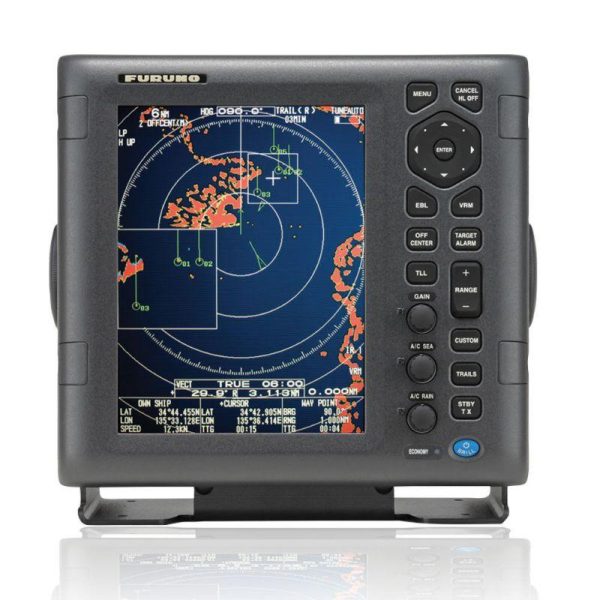

FURUNO 12 to 24 VDC 4 kW 48 nm 24 or 48 rpm Radar System with 10.4 in Color LCD Display and 3.5 ft Open Array|1935

FURUNO 1935, 4 kW Transmitter, 48 NM Radar System with 10.4 Inch Color LCD display and 3.5 ft. Open Array

info Please sign in or sign up to view pricing


The new 1835/1935/1945 Radar series features a high contrast 10.4 in color LCD radar designed for a wide range of vessels including pleasure craft, fishing boats and work boats. This new radar offers crystal clear target presentation with automatic Gain/Sea/Rain controls to deliver noise-free radar presentation. It features superb detection of even small targets both at short and long range. It also boasts all new display modes which will assist you with navigating safely on all waters. The radar allows you to see far away objects before they are visible and allows you to see in the dark, fog or during periods of obstructed visibility in any weather condition.

Additional information

Weight 100 lbs
Item Name

Radar System




Amperage Rating

6.8 to 3.3/8.2 to 3.8 A

Antenna Size

3.5 ft

Antenna Type

Open Array


2.4 deg Horizontal x 22 deg Vertical

Display Type

Color LCD

Display Resolution

640 x 480 pixel


AD-10 or IEC 61162 NMEA0183 Version 1.5/2.0/3.0 Input, IEC 61162 NMEA0183 Version 1.5/2.0/3.0 Output

Maximum Range

48 nm

Number of Target

Up to 10 TT ARPA, Up to 100 AIS Interface

Presentation Mode

Head Up, Course Up, North Up, True View, True Motion


24/48 rpm

Temperature Rating

-25 to 55 deg C Antenna, -15 to 55 deg C Display

Transmit Power

4 kW

Voltage Rating

12 to 24 VDC

Waterproof Rating
