Description

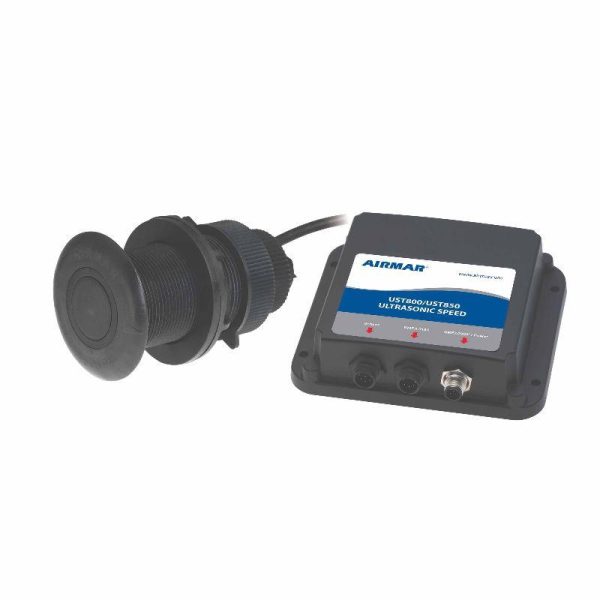

Airmar’s new UDST800 just turned your maintenance time into more cruising time and made your boat smarter too. Ultrasonic speed, depth and temperature in one single housing with no moving parts makes this sensor a high precision, low maintenance solution for use on power and sail boats of all types and sizes. Say goodbye to paddlewheel maintenance and hello to Smart™ technology, from the company who invented the Smart™ Sensor.
Additional information
| Weight | 20 lbs |
|---|---|
| Item Name | Sensor |
| Model | UST850S-B17-N2 |
| Manufacturer | |
| UPC | 801769017854 |
| Material | Plastic |
| Voltage Rating | 9 to 16 VDC |
| Depth/Speed/Temperature | Speed and Temperature |
| Dimensions | 2.94 in Dia x 4.88 in L |
| Amperage Rating | 80 mA to 200 mA Average; 125 mA at 12 VDC Supply |
| Blanking Plug | Yes |
| Correlation Pulse Repetition Frequency | 0.5 to 12 kHz (Varies with Speed) |
| Correlation Speed Sensor Transmitting Frequency | 4.5 MHz |
| Sensor Material | Plastic Insert |
| Speed Correlation Rate (Maximum Speed) | 50 kn (57 mph) |
| Thru-Hull Housing Diameter | 2 in |
| Speed Rating | 0.1 to 50 knots |
